DETAILS ABOUT INDIAN RAILWAYS LOCOMOTIVES

                                        EQUIPMENTS W AP7 locomotive's equipments has 02 parts. which are mentioned below--- CAB EQUIPMENTS.   MACHINE ROOM EQUIPMENTS.                         CAB EQUIPMENTS   :- a) Driver desk. b) Cab light. c) Cab fan.     MACHINE ROOM EQUIPMENTS :-         a) SB1 & SB2 PANNEL. b) HB1 & HB2 PANNEL. c) 02nos. TRACTION CONVERTER( SR1 & SR2 ). d) 02nos. AUXILARY CONVERTER BOX( BUR BOX 1 & BUR BOX 2 ). e) 02nos. TRACTION MOTOR BLOWER. f) 02nos. MACHINE ROOM BLOWER. g) 04nos. SCAVANGE MOTOR BLOWER. i)  02nos. OIL COOLING BLOWER( OCB ). j)  02nos. VEHICLE CONTROL UNIT( VCU ). k) 01no. FILTER CUBICLE PANNEL( FB ).

                                    WHAT IS WAP7 LOCOMOTIVE  WAP7 HOWRAH (E.R) History :-  W AP 7  is a  locomotive  developed by  Chittaranjan Locomotive Works  by modifying the  gear ratio  of existing  WAG 9  class. It is capable of hauling trains at speeds ranging between 110 to 140 kilometres per hour (68 to 87 mph) and is now largely used by Northern Railways  (NR),  South Central Railways  (SCR),  Southern Railways  (SR),  Eastern Railways  (ER),  South East Central Railway  (SECR),  Central Railways  (CR),  Western Railway  (WR),  West Central Railways  (WCR). As of August,2016 there are 288 locomotives in service. In this all the locomotives having AAR tightlock couplers, chain link couplers are fitted.                                      - :Technical specification:-   Power Type- Electric Current Collection- pantograph Power Output- 6350hp(max),6000hp( Continuous) Traction Motors- 6FRA 6068 3-phase squirrel-cage induction motors {850 kW (1,140 hp), 2180

                    VCD (VIGILANCE CONTROL DEVICE) V igilance control device ( VCD ) is one of the most safety item for locomotive. You have to operate locomotive continuously by notch UP-DOWN or press vcd push button switch,pressing sanding foot switch while running, otherwise after 60 second VCD SYSTEM gives you a warnig by glowing vcd CAB UNIT warning light for 8 second if you don't acknowledge this by pressing vcd push button switch then after completing 8 second,vcd warning light glows with a buzzer sounding for 8 second, if you don't acknowledge this time too then penalty brake activated and notch will be regress autometically,BP(BRAKE PRESSUR) will drop and auto flasher glows and locomotive will stop running autometically. You have to reset this vcd system for running locomotive again,but remember you won't be able reset for 32 second. After 32 second you will be able to reset this. After reset BP will charged. If system faulty while running and gives you abnorma

                              SILICON RECTIFIER(RSI) What is Rectifier :- R ectifier is an electrical device which converts an alternating current( A.C ) into a direct current( D.C ) by allowing a current to flow through it in one direction only . What is Semi-conductor :- S emi-conductor is a substance under normal temperature which belongs in between conductor and insulator. Semi-conductor can make by silicon,germenium e.t.c . In WAP4 locomotive silicon make semi-conductors are used . Silicon Rectifier :- T here are BRIDGE RECTIFIERS are used in silicon rectifier(RSI) . That means four nos. of silicon make semi conductor DIODES are bridge connected. A full wave bridge rectifier circuit is here under ----- FULL WAVE BRIDGE RECTIFIER T here are four or seven parallal bridge rectifier in a RSI pannel. For rectifier safety two numbers of fuse are provided namely HRC fuse and PENCIL fuse. As locomotives runs miles after miles RSI becomes hot. So, for cooling purpous a

                          SMOOTHING REACTOR(SL) In WAP4 locomotives "SL" are used to get fine DC voltage from SILICON RECTIFIRE(RSI). SL-30 type smmothing reactor rating-- 1250 V and 1350 A . In locomotives 2nos. of SL used for two nos. of BOGIES. Each SL has a motor(MVSL). Any how if high voltage comes and passes through SL circuit for that safety perpous 2nos. of relay provided namely QVSL. For control HVSL 1 and HVSL 2 switches are provided in switch board. Term 'H' indicates PROGRAM SWITCH . This HVSL switch has 4nos. of position, i.e '0','1','2','3' . Position no. '0' indiactes motor(MVSL) Is deactive, Position no. '1' indicates relay & motor both are working, Position no. '2' indicates only relay working, Position no. '3' indicates relay bipas . CIRCUIT DIAGRAM :-

                           AUXILARY EQUIPMENTS TWO NUMBERS SMOOTING REACTORES MOTORS(MVSL). i.e MVSL 1 & MVSL 2 TWO NUMBERS RECTIFIRE BLOWER(MVSI). i.e MVSI 1 & MVSI 2 . ONE NUMBER MPH . TWO NUMBERS TRACTION MOTOR BLOWER(MVMT). i.e MVMT 1 & MVMT 2 . TWO NUMBERS COMPRESSOR. i.e MCP 1 & MCP 2 . TRANSFORMER . RECTIFIRE 1 & RECTIFIRE 2 . i.e RSI 1 & RSI 2 (RSI=SILICON RECTIFIRE) . PNEUMETIC PANNEL . STATIC INVERTER(SIV) . ARNO .                                   CAB EQUIPMENT S BL BOX(LOCOMOTIVE OPERATION SWITCHES ARE THERE) . BRAKING SYSTEM(SA9=LOCO BRAKE & A9=COACH BRAKE) . SIGNALING LAMP BOX . BUZZERS . VCD(VIGILANCE CONTROL DEVICE) CAB UNIT . COOLING FAN . CAB HEATER(FOR WINTER SEASON) . LIGHTS(FOR CAB LIGHTING) . HORNS . MPCS(MICRO PROCESSOR CONTROL SYSTEM) .

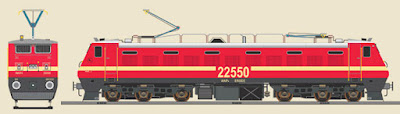

                               WAP4 LOCOMOTIVES LENGTH :- 18.794 M WIDTH    :-   3.179 M HEIGHT  :-   4.232 M WEIGHT :- 112,800 KG ELECTRIC SYSTEM :- 25KV 50Hz AC-AC OVERHEAD CURRENT COLLECTION :- PANTOGRAPH LOCO BRAKE :- AIR

                          PASSENGER LOCOMOTIVES YEAR WISE WAP 1 (Designed by Chittaranjan locomotive works in 1980 for the  Kolkata - Delhi   Rajdhani Express . A very successful class. 3900 hp maximum, 3760 hp continuous. Maximum permissible speed 130 kmph ) WAP 2 (Decommissioned in the late 1980s. Similar to WAM2 & 3. 4 built. Also had Flexicoil Mark -ll bogies. 2910 hp. Only 4 units built) WAP 3 (Rebuilt to WAP-1. Similar to WAP-1. Approximated speed of 160 kmph, Maximum permissible speed 140 kmph. 5 Built since 1987.) WAP 4  (Upgraded from WAP 1 for higher loads by Chittaranjan locomotive works in 1994. One of the most successful locomotives in India. Very powerful class. 6000 hp maximum, 5500 hp continuous. Tested for Max speed 200 kmph. Maximum permissible speed 140 kmph) WAP 5  (Imported in 1995 from Switzerland and used on premier express trains. Being built by CLW since 2000. 6000 hp maximum, 5540 hp continuous. Highly powerful class.  Bo-Bo  type locos. Max speed
